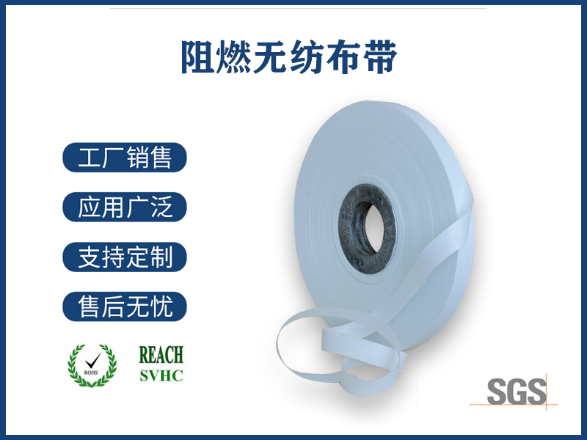

[產品說明]: 由聚酯纖維經阻燃劑浸漬粘合而成的一種環保阻燃材料。 Product Description: Made of environmentally-friendly Flame retardant material of polyester by flame retardant and impregnated.[應用方式]: 主要用于阻燃電力電纜、阻燃橡膠電纜、阻燃船用電纜、阻燃高溫硅橡膠等電纜的阻燃繞包。Applicati
[產品說明]: 由聚酯纖維經阻燃劑浸漬粘合而成的一種環保阻燃材料。
Product Description: Made of environmentally-friendly Flame retardant material of polyester by flame retardant and impregnated.
[應用方式]: 主要用于阻燃電力電纜、阻燃橡膠電纜、阻燃船用電纜、阻燃高溫硅橡膠等電纜的阻燃繞包。
Application: Mainly used in flame resistant and wrapping of cable, such as Flame retardant power cables, flame retardant rubber cables, flame retardant shipboard cables, flame retardant flame retardant high temperature silicone rubber cable.
一、主要技術指標：
Main specification:
| 產品規格Specification (mm) | 基重Basis weight (g/m2) | 拉伸強度Tensile strength（N/30mm） | 斷裂伸長率Elongation at break（%） | 氧指數Oxygen index（%） |
| 0.12±0.03 | 120±20 | ≥70 | ≥10 | ≥30 |
| 0.20±0.03 | 220±20 | ≥150 | ≥10 | ≥30 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||
二、顏色：白色。
Color: White
三、電氣特性：阻燃性好，拉伸強度大，無毒無腐蝕性，不含鹵，遇明火時不起燃燒，煙密度低。
Electrical characteristics: Flame retardant, good tensile strength, no toxic, no corrosive, no halogen, not burning when fire, low smoke density.
四、分切及包裝：分切最小寬度為10mm以上，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 10mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
