[產品說明]: PP發泡帶以聚丙烯為主材質。以物理和機械發泡工藝制成。Product Description: PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming.[應用方式]: 適用于通訊電纜及屏蔽層、防水層等多股結構復合式線纜的繞包與填充。 Application: Apply to wrapping and fi

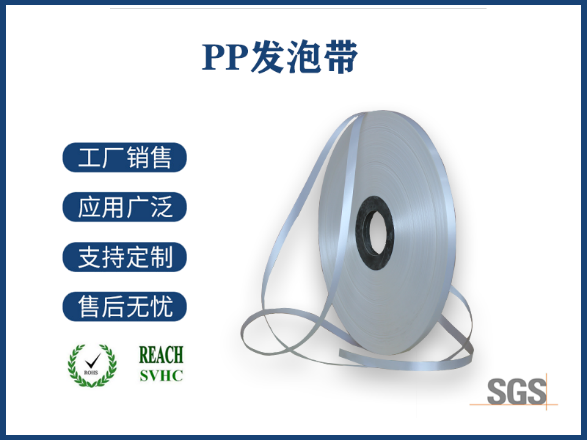

[產品說明]: PP發泡帶以聚丙烯為主材質。以物理和機械發泡工藝制成。
Product Description: PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming.
[應用方式]: 適用于通訊電纜及屏蔽層、防水層等多股結構復合式線纜的繞包與填充。
Application: Apply to wrapping and filling with communication cable and shielding layer, waterproof layer of composite cable with multiple structures.
一、主要技術指標：
Main specification:
產品規格 Specification (mm) | 基重 Basis weight （g/m2） | 拉伸強度 Tensile strength （kg/m2） | 斷裂伸長率 Elongation at break （%） |
| 0.12±0.02 | 60±10 | ≥35 | ≥10 |
| 0.14±0.02 | 70±10 | ≥40 | ≥10 |
| 0.16±0.02 | 80±10 | ≥45 | ≥10 |
| 0.18±0.02 | 90±10 | ≥52 | ≥10 |
| 0.20±0.02 | 100±10 | ≥58 | ≥10 |
除以上規格外，其它可按客戶特殊要求單獨設計。 In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：白色。
Color: White
三、電氣特性：PP發泡帶的主要特點是比重輕、縱向拉力好、環保。具有良好的耐熱性，可用于超過120℃的場合
Electrical characteristics: The main character of PP foam tape is light weight, good longitudinal tensile, environmentally friendly. Has good heat resistance and can be used for more than 120℃.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
